Broken solar panels - lightning damage, shattered glass

Here are some samples of damaged solar panels, some due to lightning and some due to storms knocking trees onto solar panels. Thanks to Ottawa Solar Power for the use of most of these photos.

Shattered glass on solar panels

The photos below are of a solar panel that had a tree fall on it when the tree fell onto the roof during a storm. You can see the one spot where the tree hit, the whitish spot, but since it hit tempered glass the whole glass shattered.

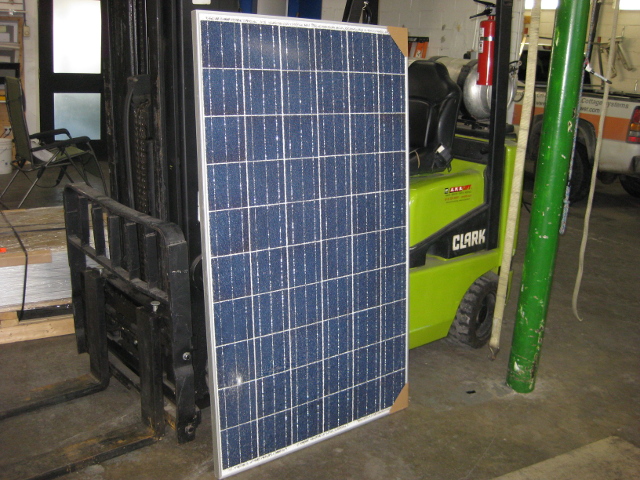

Solar panel hit by a falling tree.
Solar panel damaged by a falling tree, shattering the tempered
      glass.

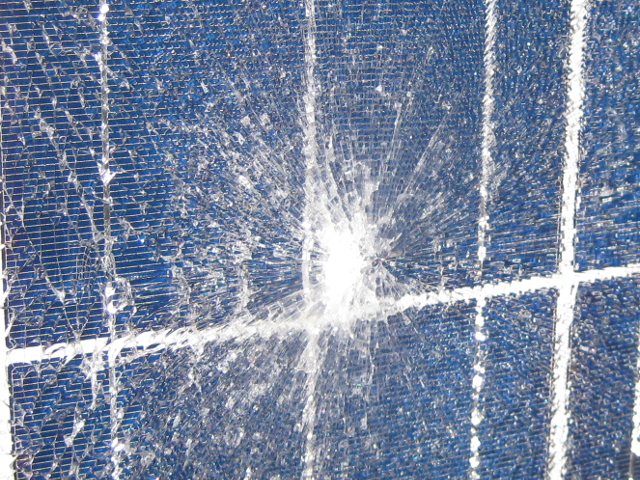

The point of impact.
The point where the tree hit the solar panel and shattered the
      tempered glass.

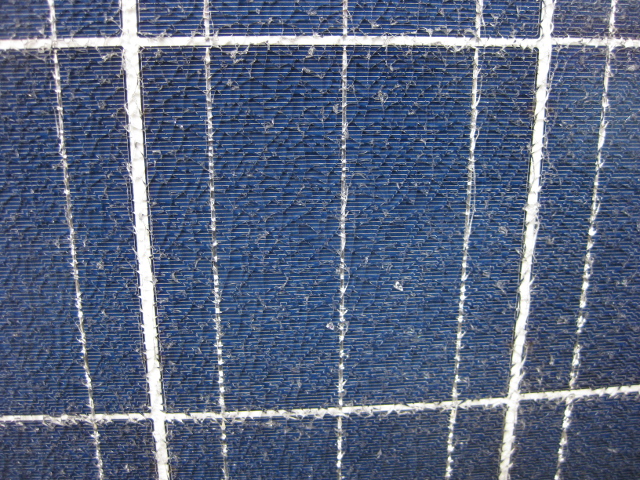

Close-up of the damage.
Close-up of the damage caused by a tree falling on a solar panel,
      shattering the tempered glass.

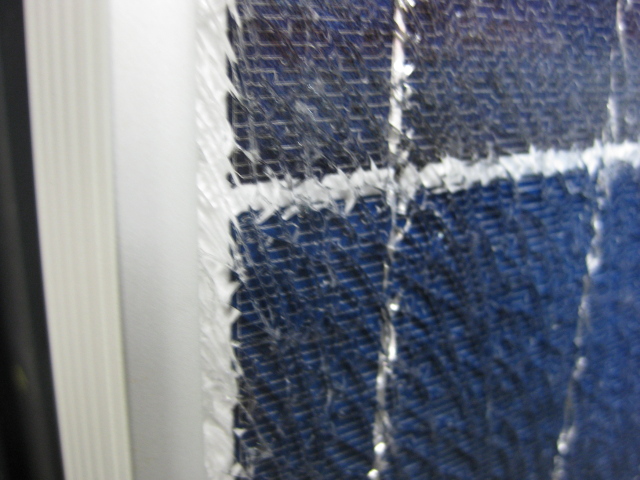

Another close-up.
Close-up of the damage caused by a tree falling on a solar panel,
      shattering the tempered glass.

Solar panels have tempered glass glued to the front side the panel, with the solar cells and tinned strips of metal for connecting the cells together immediately behind the glass. Tempered glass is designed to shatter in many small pieces instead of large dangerous shards as you get with normal window glass. Car windows are also tempered glass.

When the glass of a solar panel breaks, it breaks into many small pieces, but because the tempered glass has glue on the inside face, the many small pieces stay in place. But even if the solar cells behind are not damaged, not nearly as much light can get to them due to the misshapen glass.

Repairable solar panel with shattered glass

However, with the solar panel below, the shattering occured on only a small portion of the bottom left face. There was still enough light getting through to produce a usuable output and so the owner simply repaired the solar panel by waterproofing it. See the link for details.

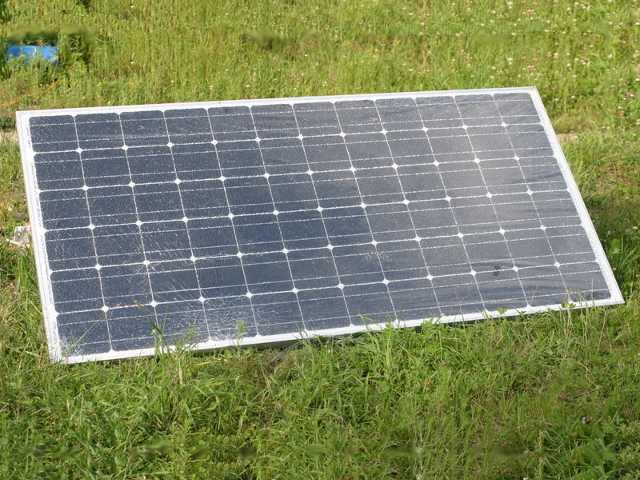

Solar panel glass shattered on bottom left.
Solar panel with glass shattered on bottom left only.

Lightning damage

The following solar panel came from a system that was struck by lightning somewhere and no longer works. As well as damaging the electronics in the box in the back of the panel where the connecting wires go to, it produced enough heat to cause visible damage to the box itself. You can see where it got hot enough from the high electrical current to melt a round hole in the box.

The box on the back of the solar panel.
The box on the back of the solar panel that was damaged by
      lightning.

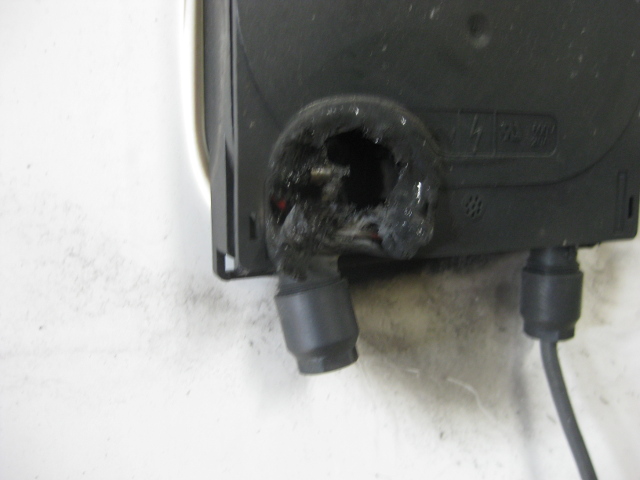

Close-up of the melted hole.
Close-up of the hole melted by lightning damage in the plastic
      box behind the solar panel.

You usually can't fix a solar panel that's been struck by lightning. However, inside the plastic box behind the solar panel are some diodes. I once fixed a solar panel by replacing those diodes, as it was one of the diodes that was damaged. If the diodes are encased in epoxy then you can't get at them. In the one I repaired the diodes were visible, and removable using screws. It was a customer's panel and I don't know if the cause was lightning or something else.

Below are photos showing how lightning damaged one solar power system. The lightning struck the tree, and you can see the physical damage to the tree where it was split in places. The electricity then move down the tree to a thick root where it passed near some buried cables of a solar system. It then entered the cables and damaged some nearby inverters. The event even blew a rock out of the hole, uncovering the cables, inadvertently making it easier to find out what happened.

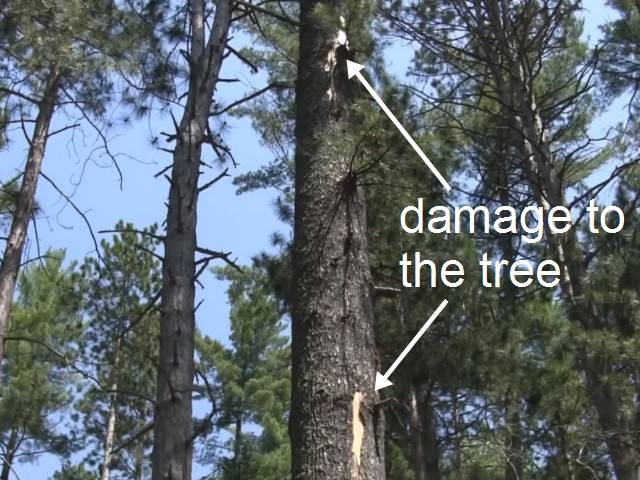

Lightning damage to the tree.
Lightning damage to the tree that caused damage to a solar system.

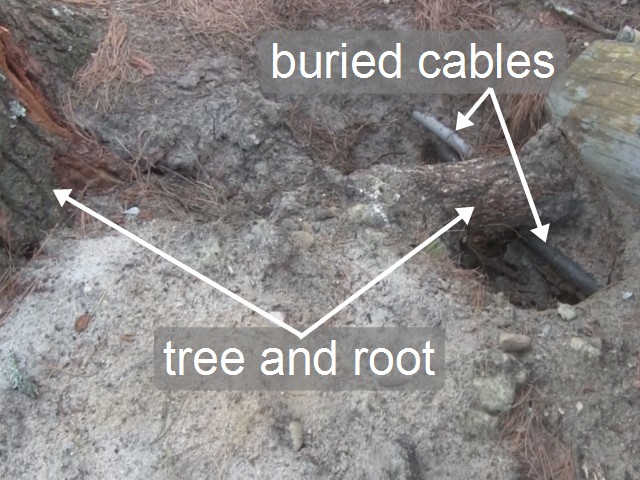

The root and cables.
The root that the lightning current travelled on and the buried
      cables of the damaged solar system.
