Joule thief - getting power from dead batteries

The joule thief (aka blocking oscillator) is an electronic circuit that allows you to make use of batteries normally considered dead. A battery is often considered "dead" when it can't power a particular device. But what's really happening is that the battery voltage is no longer high enough for the device when it's used directly. The joule thief circuit massages the voltage and current coming from the battery so that the voltage is high enough, for periods of time, for the device to work continuously.

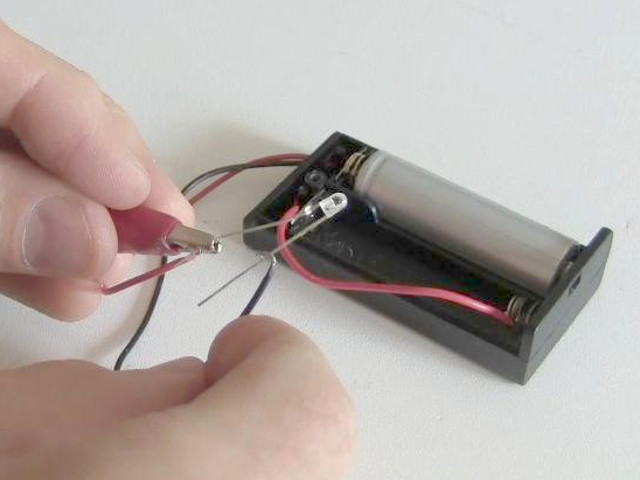

Connected directly, this batteries can't run the LED...
Showing that with the LED connected directly to the battery,
      there isn't enough voltage to run the LED.

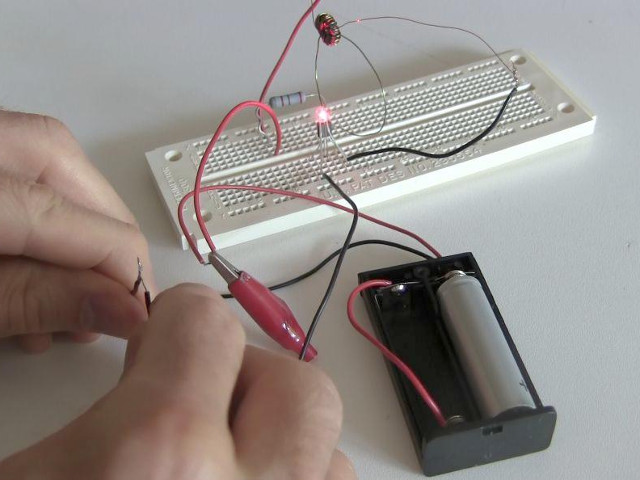

... but through the joule thief, it works.
Using a joule thief to light an LED.

The LED in the above photo requires 1.85 volts but as the photo below shows, the battery voltage is only 1.27 volts. When run through the joule thief circuit, the voltage is as high as 24 volts, as shown in the oscilloscope output n the photo on the right. Notice that the LED is not always getting power, but it's often enough to keep it lit.

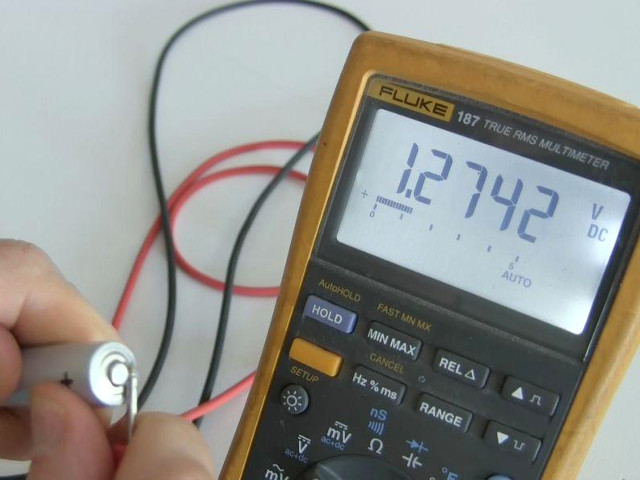

Battery voltage is 1.27 volts but the LED needs 1.85.
Measuring the battery voltage with a digital multimeter (DMM)
      and getting 1.27, not enough to run the LED.

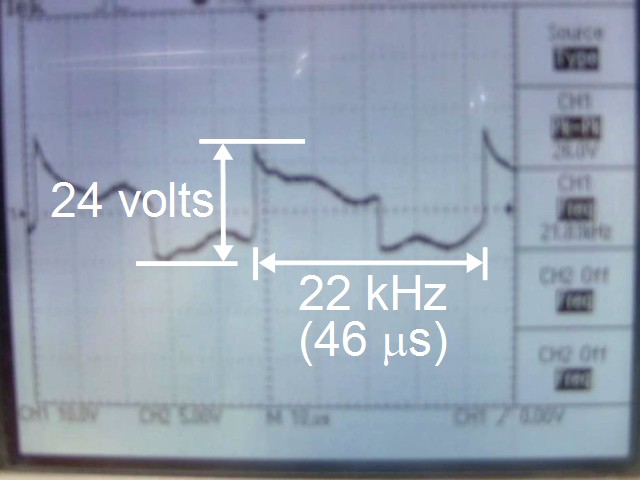

Oscilloscope output showing 24 volts, occasionally.
Oscilloscope output showing 24 volts, occasionally.

What the joule thief can run

It's simple to get it to run an LED for a long period of time, even starting with a battery with less that 1 volt.

Here's a joule thief powering a compact fluorescent lightbulb (CFL) by adding an extra coil of wire to the toroid core. Also, the electronics has to be removed from the CFL so that the joule thief circuit is powering the fluorescent tubes directly. i.e. it must be a gutted CFL.

Here's a joule thief powering clock by adding two extra coils and extra circuitry to first store the energy in a capacitor which the clock can draw from.

How to make a joule thief

Here is the joule thief circuit used in the above photos.

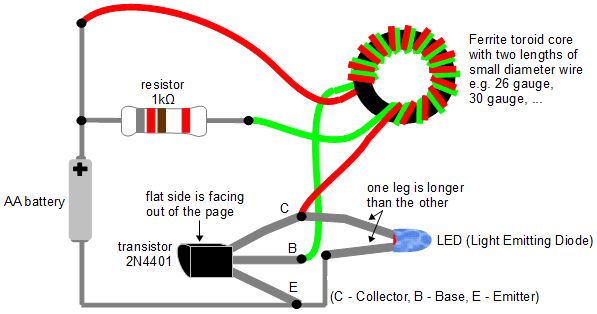

The joule thief circuit.
Circuit diagram for the joule thief - lighting an LED.

Transistor - The legs of the transistor can be determined by noticing that there's a flat side to the transistor case. See the diagram above. A large number of transistors have been reported to work: 2N4401, NET123AP, BC547B, 2SC2500, BC337, PN2222, to name just a few.

LED - One leg of the LED is longer than the other leg. Use this to determine which one goes where. See the diagram above.

Resistor - The diagram says use a 1 kilo ohm resistor but I've used an 820 ohm one just fine. I've also seen a 2 kilo ohm one in use. Use whatever works for you. You can also use a potentiometer (a variable resistor) so that you can easily adjust it to select the resistance that gives the best light.

Toroid ferrite core - Some people have gotten these by opening up compact fluorescent lightbulbs (CFLs). I took mine out of some device whose original function I don't know. To get it working, my first one had just 13 turns for each wire and I used a 30 gauge wire and a 26 gauge wire. The wire must be insulated. A variety of number of turns will work. This is something you can play with. Look at the diagram carefully to determine where the wires connect to.

Joule thief Videos

Video - How to Make a Joule Thief - Making a Joule Thief to power Zombie Batteries

The following video goes through step-by-step on how to make a joule thief, along with a little fun about zombie batteries.

Video - How a Joule Thief Works

This video goes through a step-by-step explanation of how it works.
