Testatika as a variable capacitor charge pump - circuit 1

Back to Testatika theories
Related links:
[Non-conv. Energy], [Testatika small mach. rot.]

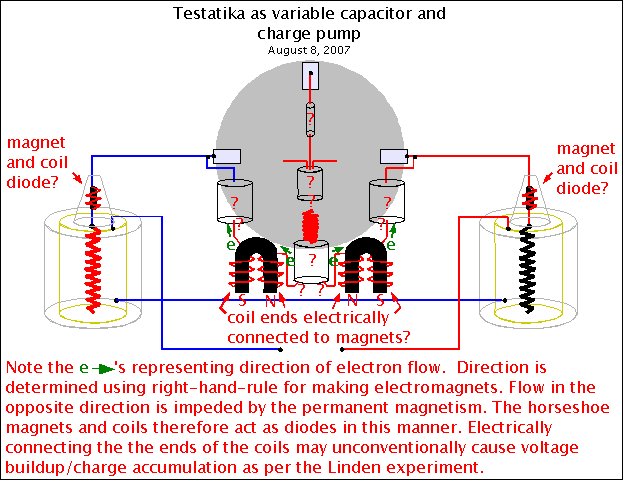

If you consider the testatika's horseshoe magnets as being used at a minimum as diodes and the front disk as a variable capacitor, then it is clear from looking at the 3kW machine that some components of it can function as a charge pump.

An excellant explanation for how a variable capacitor and diodes can be used as a charge pump can be found in G.L. Usselman's US patent 2,413,391. In fact, I'd had the circuit below in mind for a while but until I got a better understanding from this patent, I had the current flow (and my understanding) backwards. Thanks to James on the testatika Yahoogroup for bringing up this patent.

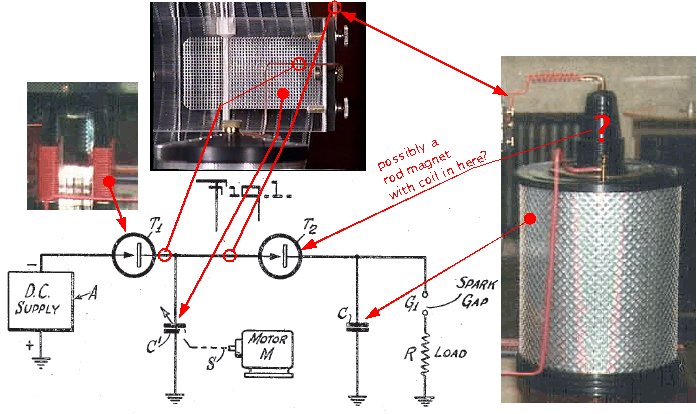

Possible components from the 3kW testatika and where they could go in Figure 1 of the patent.

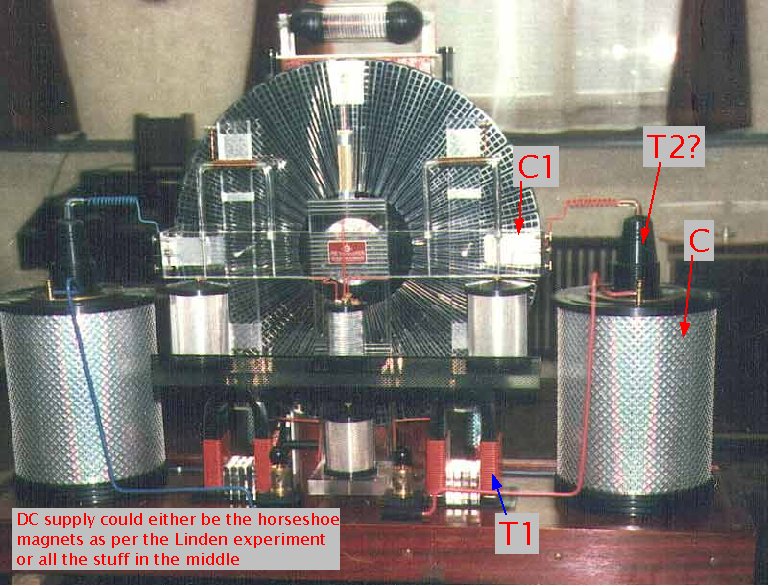

The 3kW testatika with Figure 1's labels.

Details on the Linden experiment, mentioned in the above diagram can be found here.
